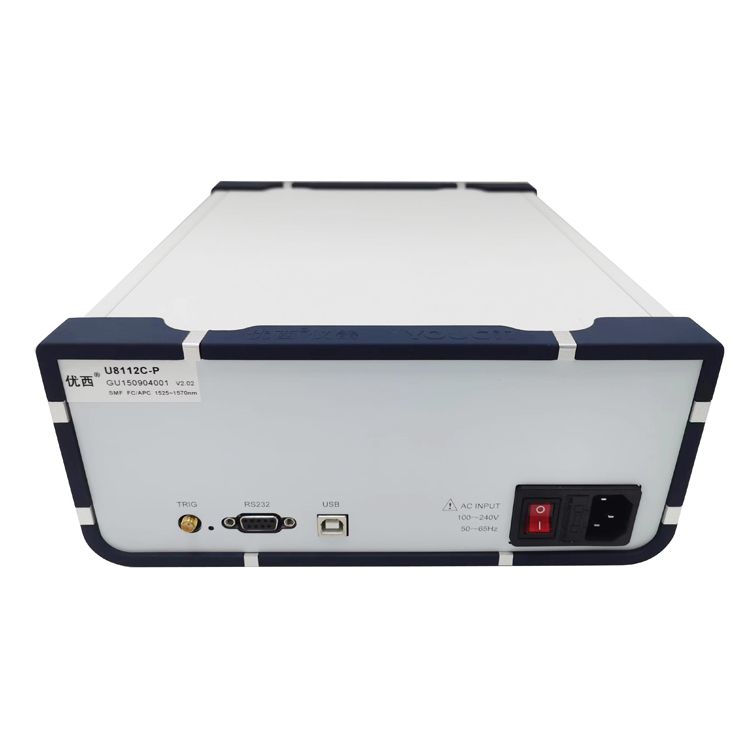

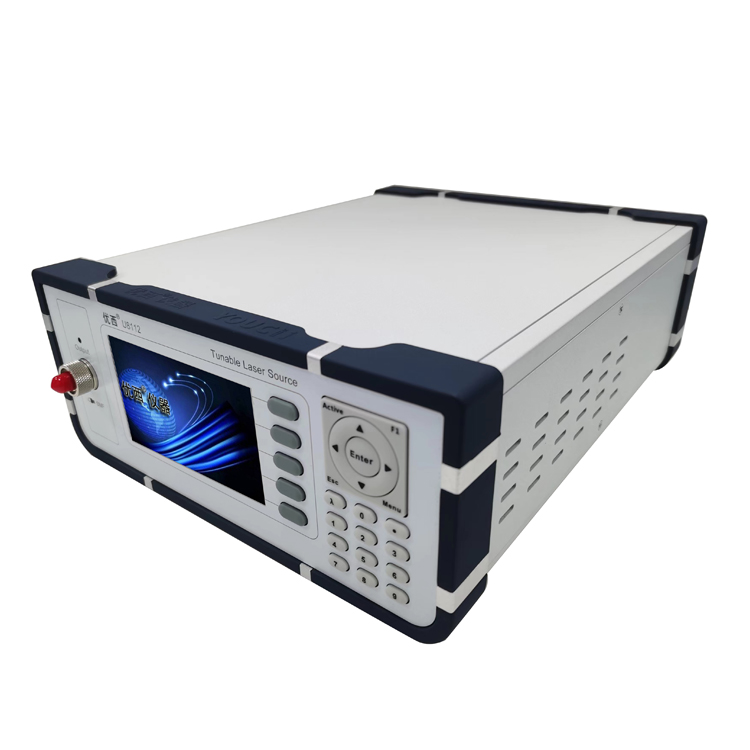

U8112 Desktop Tunable Laser Source
U8112 Desktop Tunable Laser Source
The U8112 Desktop Tunable Lasers offer superior performance for the testing of DWDM components, AWG & PLC components, optical amplifiers EDFA, DWDM system and other general purpose fiber optic test and measurement applications. It has a wavelength high accuracy, high power output, small dimensions, fast startup, and is an affordable tunable laser source system. The system comes with O band，C band, L band, or C + L band options.
Specification
Model # | U8112 | |||
Band Option | O | C | L | CL |
Wavelength Tuning range （nm） | 1260~1360 | 1525~1568 | 1568~1610 | 1525~1610 |
Output Power | ≥ 7dBm | ≥ 13dBm | ≥ 10dBm | ≥ 7dBm |
Power Adjust Range （Option） | 25 dB | |||
Wavelength resolution | 1.0 pm | |||
Absolute wavelength accuracy | ± 10 pm, typ. ＜ 5 pm | |||
Relative wavelength accuracy | ±5 pm, typ. ± 2 pm | |||
Wavelength repeatability | ± 2 pm, typ. ±1 pm | |||
Wavelength stability | ≤± 2 pm (24 hrs at constant temperature) | |||
Tuning speed | ≤ 2 ms per step | |||
Power stability | ≤ ± 0.01dB, (15min). | |||
Power linearity | ± 0.3dB | |||
Power flatness versus wavelength | 0.3dB typ. 0.5dB max. | |||
Side-mode Suppression ratio | ≥ 35dB | ≥ 45dB | ||
Relative intensity noise | ＜ -135dB | |||
Power | AC 100 - 240 V ± 10%, 48 - 66 Hz, 100 VA max. | |||
Storage temperature | −40°C to +80°C | |||
Operating temperature | 0°C to +45°C | |||
Dimensions | 245 mm W, 105 mm H, 320 mm D | |||
Weight | 2.0 kg | |||
