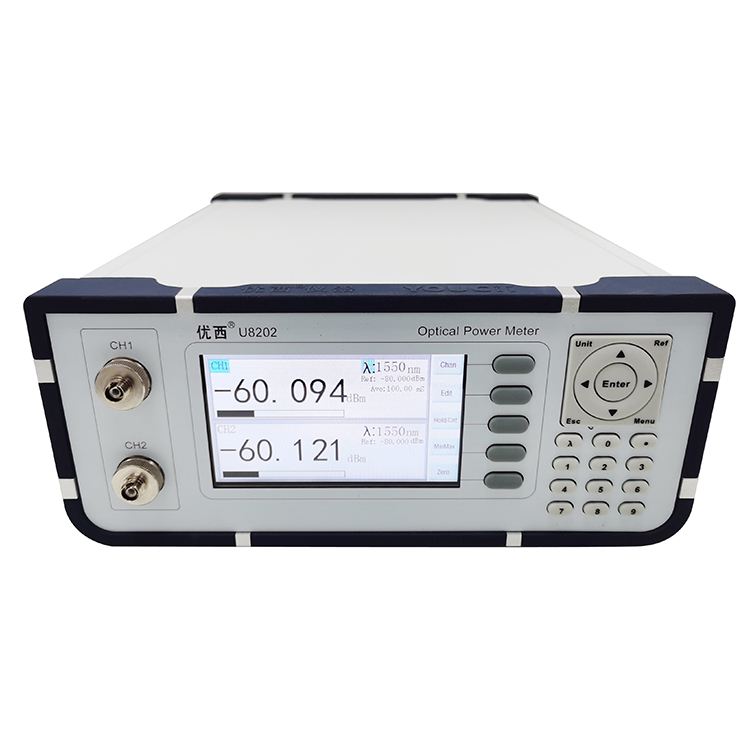

U8202 Double Channel Power Meter
U8202 Double Channel Power Meter
U8202 Double channel optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume production lines.
U8202 optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter options.
Specification
Model # | U8201 | U8202 | U8201H | U8202H |
Sensor Element | Single channel | Double channel | Single channel | Double channel |
Power Range | +5 ~ -65 dBm | +15 ~ -55 dBm | ||
Wavelength Range | 850 ~ 1700 nm | |||
Calibration Wavelength | 850/980/1310/1490/1550/1610分段校准, | |||
Application Fiber Type | Standard SM and MM up to 62.5 um core size | |||
Absolute Uncertainty (accuracy) at reference condition | ± 4% (1200 nm ~ 1610 nm) | |||
Relative Uncertainty (accuracy) at reference condition | ＜ 0.02 dB Typical | |||
Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50 dBm) | |||
Return Loss | ＞ 40 dB | |||
Operation Temperature | 0 ～ +40℃ | |||
Storage Temperature | -30 ～ +80℃ | |||
Recalibration Period | 2 years | |||
Dimensions | 245 mm W, 105 mm H, 320 mm D | |||
Weight | 4.5 kg | |||
