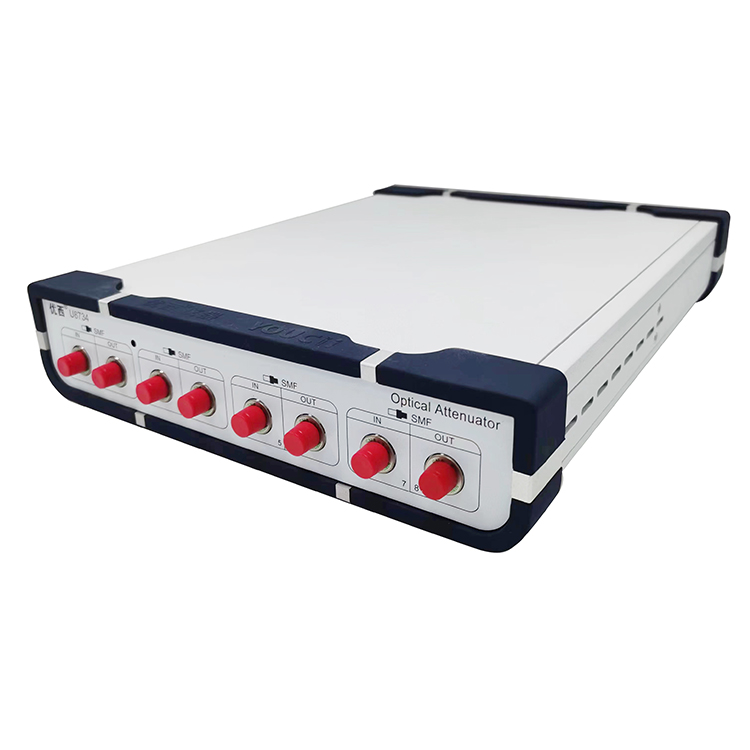

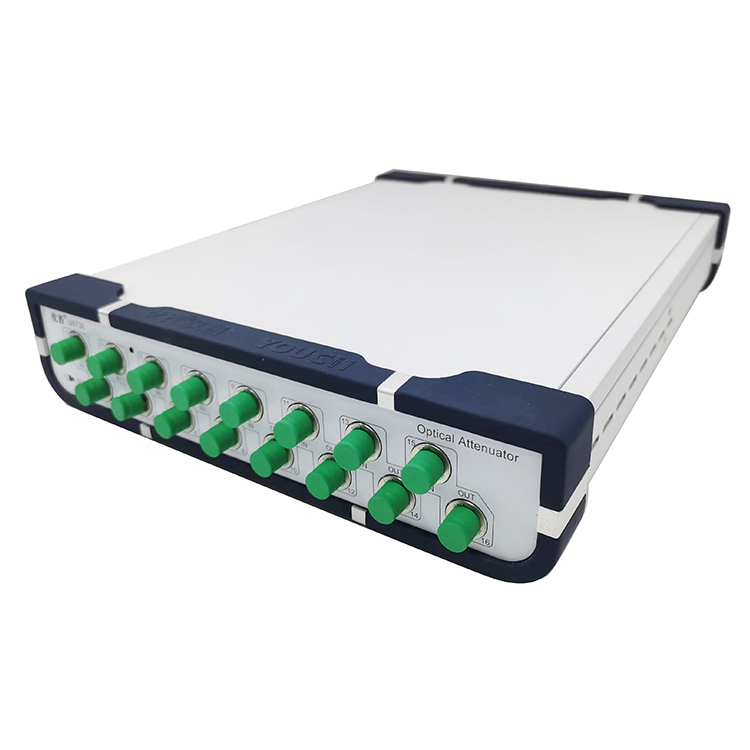

U8734/U8738 4/8 channel optical controlled optical attenuator

Applications

Active optical module/optical device test:

In the multi-channel error measurement of optical transceiver modules, parallel data measurement is realized;

In the sensitivity measurement of the light receiving module, parallel fast and accurate optical power input is provided;

100 millisecond optical power control stabilization time greatly improves testing efficiency.

Optical communication network integration test:

In optical communication network integration, test network transmission performance and network management functions.

Features

The optical attenuation and optical power output can be set quickly and accurately, and the optical power control stabilization time is ≤ 100 ms.

The multi-channel attenuator is set up at the same time, and multiple ports are measured at the same time, saving a lot of measurement time;

Built-in high-precision optical power meter ensures the stability and accuracy of power monitoring;

Simple operation, intuitive graphical user interface, preview of multi-channel data at the same time, and the test status is clear at a glance;

Small size and compact structure. Multiple devices can be customized to use cascaded to expand the number of channels.

Specification
