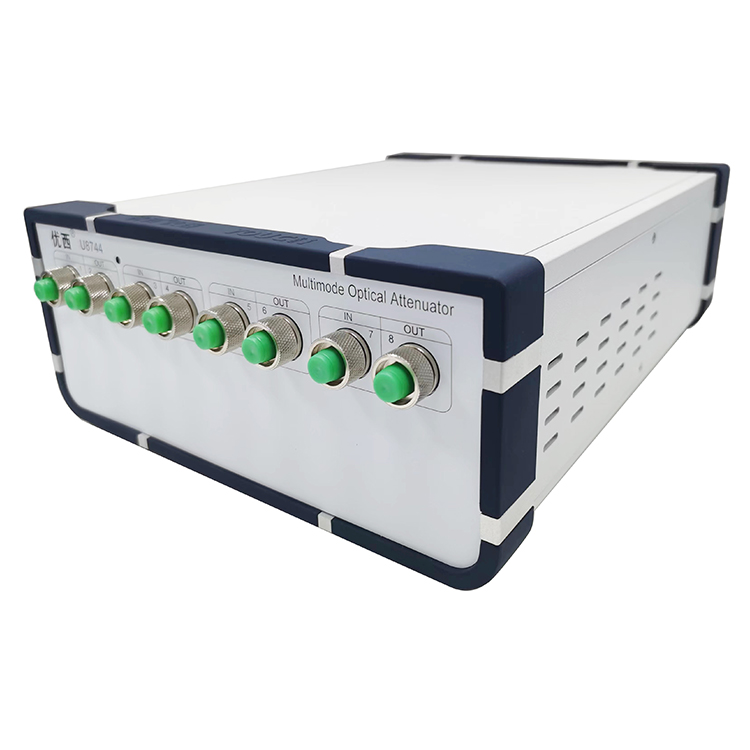

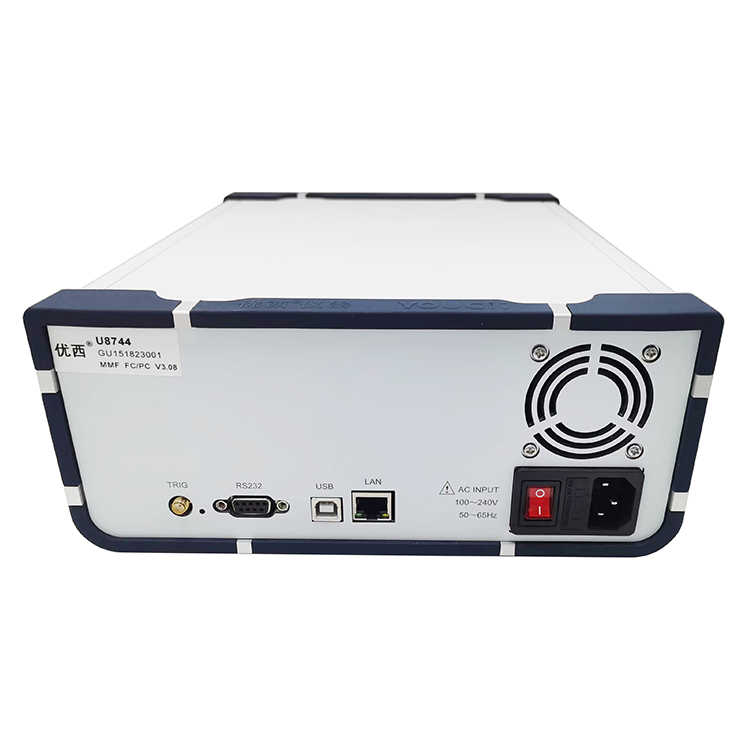

U8744 4 channel multi mode optical attenuator
U8744 4 channel multi mode optical attenuator
In the multi-channel error measurement of optical transceiver modules, parallel data measurement is realized;
In the sensitivity measurement of the light receiving module, parallel fast and accurate optical power input is provided;
200The 200 millisecond optical power control stabilization time greatly improves the test efficiency.
Optical communication network integration test:
In optical communication network integration, test network transmission performance and network management functions.
Applications
Active optical module/optical device test:
In the multi-channel error measurement of optical transceiver modules, parallel data measurement is realized;
In the sensitivity measurement of the light receiving module, parallel fast and accurate optical power input is provided;
200The 200 millisecond optical power control stabilization time greatly improves the test efficiency.
Optical communication network integration test:
In optical communication network integration, test network transmission performance and network management functions.
Features
The optical attenuation and optical power output can be set quickly and accurately, and the optical power control stabilization time is ≤ 200 ms.
The multi-channel attenuator is set up at the same time, and multiple ports are measured at the same time, saving a lot of measurement time;
Built-in high-precision optical power meter ensures the stability and accuracy of power monitoring;
Simple operation, intuitive graphical user interface, preview of multi-channel data at the same time, and the test status is clear at a glance.
Small in size and compact in structure, two 4-channel devices are cascaded and can be identified as an 8-channel device for use.
Specification
Model # | U8744 |
Attenuator Range | 0~35 dB（40dB Type） |
Calibration Wavelength (Option) | 850 nm (Other wavelengths are available) |
Insertion Loss | ≤ 1.8 dB Type 1.5dB |
Fiber Type | 50/125um, 62.5/125um MMF Adaptive |
Connector Type | FC/UPC Connector |
Attenuation Accuracy | ± 0.20 dB (0 ~ 20 dB)， ± 0.30 dB (20 ~ 35 dB) ± 0.05 dB (0 ~ 30 dB With Power control) |
Repeatability | ±0.05 dB |
Averaging time of monitor PM | 2~1000 ms |
Settling Time | 200ms |
Attenuation Transition Speed | 0.1 ~ 35 dB/s |
Return Loss | > 25 dB |
Communication Interface | RS232, USB, RJ45 Control by PC |
Maximum safe input power | +17dBm （In power monitoring state） |
Recalibration Period | 2 years |
Operation Temperature | 0～ +40℃ |
Storage Temperature | -30～+80℃ |
Power | 100~240 V |
Dimensions | 245mm W, 105mm H, 320 mm D |
Weight | 5 kg |
Remark：U8741 is a single channel, U8742 is a dual channel, and U8748 is 8 channels.
